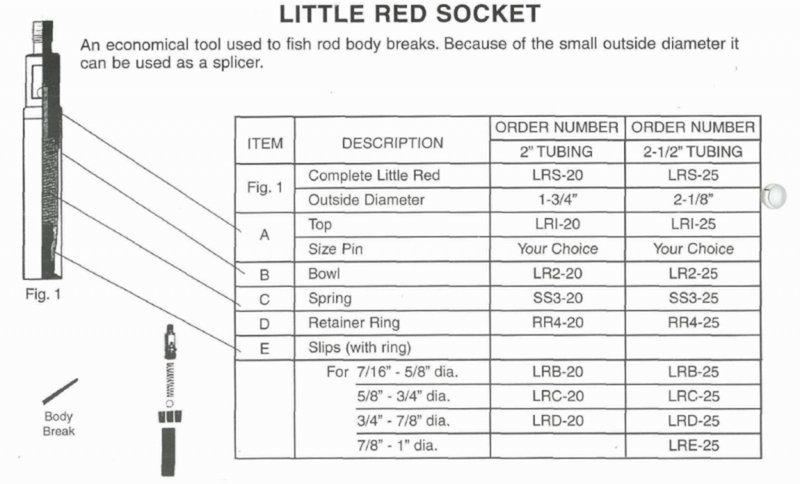

An economical tool used to fish rod body breaks. Because of the small outside diameter it can be used as a splicer.
| Description |
Order Number 2" Tubing |
Order Number 2 1/2" Tubing |
| Complete Little Red | LRS-20 | LRS-25 |
| Outside Diameter | 1 3/4" | 2 1/8" |
| Top | LRI-20 | LRI-25 |
| Size Pin |
3/4" is standard. or 5/8" |
3/4" is standard.
7/8" or 1" Available |
| Bowl | LR2-20 | LR2-25 |
| Spring | SS3-20 | SS3-25 |
| Retainer Ring | RR4-20 | RR4-25 |
|
Slips (with ring) For |
||
| 7/16" - 5/8" DIA. | LRB-20 | LRB-25 |
| 5/8" - 3/4" DIA. | LRC-20 | LRC-25 |
| 3/4" - 7/8" DIA. | LRD-20 | LRD-25 |
| 7/8" - 1" | LRE-25 |
DEEP WELL SLIPS
5/8" DWA - 20
3/4" DWB - 20 DWB - 25
7/8' DWC - 20 DWC - 25
1" DWD - 25
* Complete Tools include choice of standard type Upper Slips
Complete Splicer Socket LRSS-20 LRSS-25
Adapter for Splicer LRSF-20 LRSF-25
