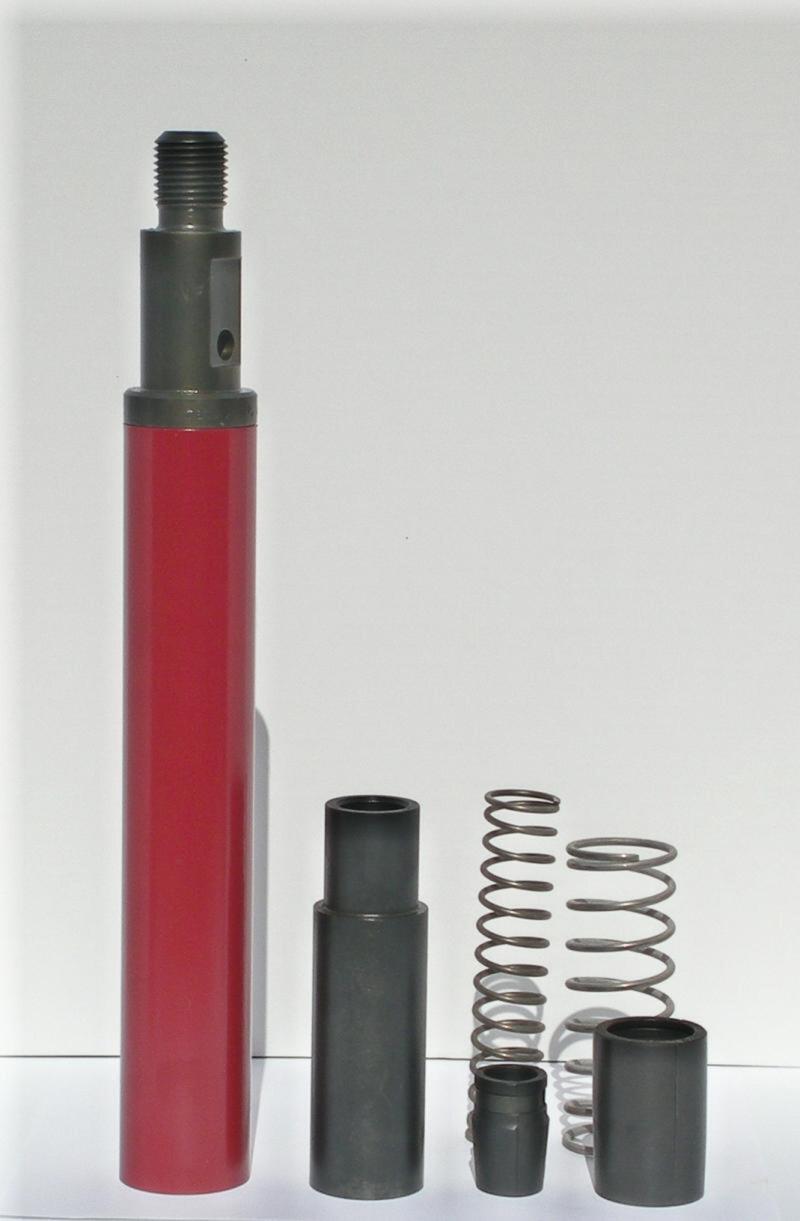

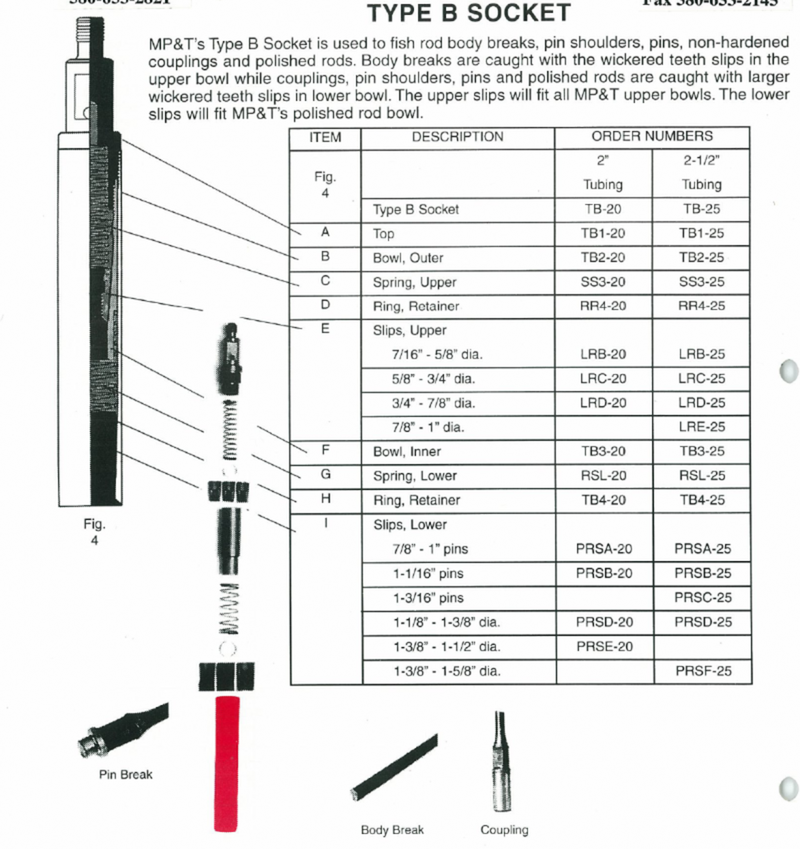

MP&T's Type B Socket is used to fish rod body breaks, pin shoulders, pins, non-hardened
couplings and polished rods. Body breaks are caught with the wickered teeth slips in the
upper bowl while couplings, pin shoulders, pins and polished rods are caught with larger
wickered teeth slips in lower bowl. The upper slips will fit all MP&T upper bowls. The lower
slips will fit MP&T's polished rod bowl.
| Description |
Order Numbers 2" Tubing |
Order Numbers 2 1/2" Tubing |
| Type B Socket | TB-20 | TB-25 |
| Top | TB1-20 | TB1-25 |
| Bowl, Outer | TB2-20 | TB2-25 |
| Spring, Upper | SS3-20 | SS3-25 |
| Ring, Retainer | RR4-20 | RR4-25 |
|
Slips, Upper |
||
| 7/16" - 5/8" | LRB-20 | LRB-25 |
| 5/8" - 3/4" | LRC-20 | LRC-25 |
| 3/4" - 7/8" | LRD-20 | LRD-25 |
| 7/8" - 1" | LRE-25 | |
| Bowl, Inner | TB3-20 | TB3-25 |
| Spring, Lower | RSL-20 | RSL-25 |
| Ring, Retainer | TB4-20 | TB4-25 |
| Slips, Lower | ||
| 7/8" - 1" Pins | PRSA-20 | PRSA-25 |
| 1 1/6" Pins | PRSB-20 | PRSB-25 |
| 1 3/16" | PRSC-25 | |
| 1 1/8" - 1 3/8" DIA. | PRSD-20 | PRSD-25 |
|
1 3/8" - 1 1/2" DIA. 1 3/8" - 1 5/8" DIA. |
PRSE-20
|
PRSF-25 |
DEEP WELL UPPER SLIPS
5/8" DWA - 20
3/4" DWB - 20 DWB - 25
7/8' DWC - 20 DWC - 25
1" DWD - 25
* Complete Tools include choice of standard type Upper Slips and Lower slips
